IS/ISR单级单吸离心泵结构图及结构说明
时间：2014-1-4 来源：扬子江泵业 浏览数：1839
IS/ISR单级单吸离心泵概述：
该系列产品包括了ISO2858规定的全部40个型号，通过切割叶轮和变速可获得267种性能，能适应各行各业的供水需要。严格按照ISO2858，意味着合理的特性曲线。IS系列单级泵与其它单位生产的IS单级泵区别是工作压力1.6MPa，泵体泵盖静压力试验为2.4MPa。
本系列泵是单级单吸悬臂式离心泵，供汲送清水及物理化学性质类似于水不含固体颗粒的液体之用。IS型泵介质温度适用于80℃以下；ISR型泵适用于输送130℃以下热水；ISY型泵用于输送汽油，柴油等轻油
IS/ISR单级单吸离心泵用途：
IS/ISR单级单吸离心泵适用于工业和民用建筑业，如冶金、电站、纺织、化工、印染、陶瓷、橡胶、采暖、余热利用、空调等。
IS/ISR单级单吸离心泵产品特点：
1、IS/ISR型卧式单级单吸清水离心泵根据国际标准ISO2858所规定的性能和尺寸设计的，主要由泵体、泵盖、叶轮、轴、密封环、轴套及悬架轴承不见等组成。
2、IS/ISR型卧式单级单吸清水离心泵的泵体和泵盖部分，是从叶轮背面处剖分的，即通常所说的后开门结构形式。其优点是检修方便，检修时不动泵体，吸入管路，排出管路和电动机，只需拆下加长联轴器的中间联接件，即可退出转子部分进行检修。
3、泵的壳体(即泵体和泵盖)构成泵的工作室。叶轮、轴和滚动轴承等为泵的转子。悬架轴承部件支撑着泵的转子部分，滚动轴承受泵的径向力和轴向力。
4、为了平衡泵的轴向力，大多数泵的叶轮前、后均设有密封环，并在叶轮后盖板上设有平衡孔，由于有些泵轴向力不大，叶轮背面未设密封环和平衡孔。
5、泵的轴向密封环是由填料压盖，填料环和填料等组成，以防止进气或大量漏水。泵的叶轮如有平衡，则装有软填料的空腔与叶轮吸入口相通，如叶轮入口处液体处于真空状态，则很容易沿着轴套表面进气，故在填料腔内装有填料环通过泵盖上的小孔，将泵室内压力水引至填料环进行密封。泵的叶轮如没有平衡孔，由于叶轮背面液体压力大于大气压，因而不存在漏气问题，故可不装填料环。
6、为避免轴磨损，在轴通过填料腔的部位装有轴套保护。轴套与轴之间准有O型密封圈，以防止沿着配合表面进气或漏水。
7、泵的传动方式是通过加长弹性联轴器与电动机联接的，泵的旋转方向，从驱动端看，为顺时针方向旋转。

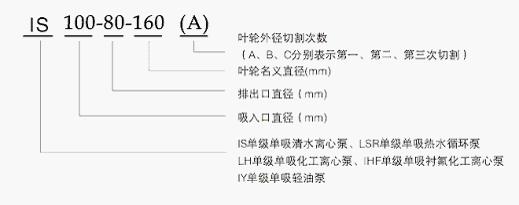

IS/ISR单级单吸离心泵型号意义：

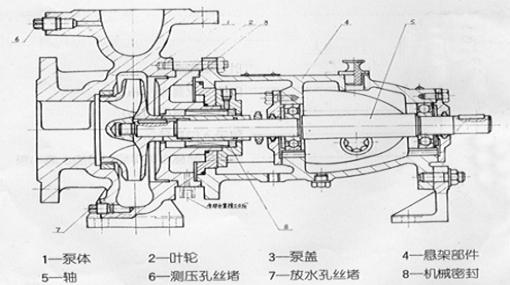

IS/ISR单级单吸离心泵结构图及结构说明：
ISR系列单级单吸热水离心泵的主要零件有泵体、叶轮、泵盖、悬架部件，机械密封部件、轴等。该系列泵为后开门结构，其优点是转子部件检修或更换无须拆卸管道，转子部件由悬架支撑哲（请参考ISR泵结构图）。泵轴向力的平衡，轴向力较大的泵，叶轮设有平衡孔，其余轴向力由轴承承受。轴封形式采用不平衡单端面机械密封，轴封室外设有水冷却套，可以通过泵侧面1/4管接口接通外来冷水，对轴封进行冷却。传动方式，泵的传动是通过联轴器与电机直联。从传动方向看，泵为顺时针旋转。

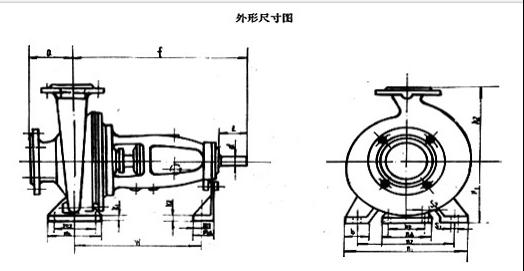

IS/ISR单级单吸离心泵外形尺寸图：
IS/ISR单级单吸离心泵基本参数：
|
