卧式热水循环泵空调循环泵结构图
时间：2013-2-19 来源：扬子江泵业 浏览数：2013
ISW、ISWR、ISWH、ISWD、ISWRD、ISWHD、ISWYD系列卧式单级单吸管道离心泵（简称热水循环泵）根据IS型离心泵与立式泵的独特结构组合设计，并严格按照国际标准ISO2858和新的国家管道离心泵标准JB/T53058-93进行设计制造的高效节能产品。该泵采用国内先进水力模型优化设计而成。同时根据使用温度、介质等不同在ISW型基础上派生出热水泵、高温泵、化工泵、油泵等，是目前国家标准定型推广产品。
产品特点
泵轴的绝对同心度及叶轮优异的动静平衡，保证平稳运行，绝无振动，不同材质的硬质合金密封，保证了不同介质输送均无泄漏，结构简单合理，关键部分采用国际一流品质配套，整机无故障工作时间大大提高。维修方便，更换密封、轴承、简易方便。系列流量范围1.5～2000m3/h，扬程范围5～125m
产品用途
（1）ISW卧式清水泵，供输送清水及物理化学性质类似于清水的其他液体之用，适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套，使用温度≤80℃。（2）ISWR卧式热水泵广泛适用于冶金、化工、纺织、造纸以及宾管、饭店等锅炉热水循环增压及城市采暖系统。ISW型使用温度T≤120℃。（3）ISWH卧式化工泵，供输送不含固体颗粒、具有腐蚀性、粘度类似于水液体，适用于石油、化工、冶金、电力、造纸、食品、制药及合成纤维等部门，使用温为-20－120℃。（4）ISWB卧式管道油泵，供输送油、煤油、柴油等油类产品或燃、易爆液体，被输送介质温度-20－120℃。
| ISW卧式清水泵 | |||||||||
| 型 号 | 流 量Q | 扬程 m |
效率 % |
转速 r/min |
电机功率 KW |
允许汽蚀余量 m |
|||
| m3/h | l/s | ||||||||
| 15-80 | 1.5 | 0.42 | 8 | 34 | 2800 | 0.18 | 2.3 | ||
| 20-110 | 2.5 | 0.69 | 15 | 34 | 2800 | 0.37 | 2.3 | ||
| 20-160 | 2.5 | 0.69 | 32 | 25 | 2900 | 0.75 | 2.3 | ||
| 25-110 | 4 | 1.11 | 15 | 42 | 2900 | 0.55 | 2.3 | ||
| 25-125 | 4 | 1.11 | 20 | 36 | 2900 | 0.75 | 2.3 | ||
| 25-125A | 3.6 | 1.0 | 16 | 35 | 2900 | 0.55 | 2.3 | ||
| 25-160 | 4 | 1.11 | 32 | 32 | 2900 | 1.5 | 2.3 | ||
| 25-160A | 3.7 | 1.03 | 28 | 31 | 2900 | 1.1 | 2.3 | ||
| 32-100 | 4.5 | 12.5 | 12.5 | 44 | 2900 | 0.55 | 2.3 | ||
| 32-100(I) | 6.3 | 1.75 | 12.5 | 54 | 2900 | 0.75 | 2.3 | ||
| 32-125 | 5 | 1.39 | 20 | 44 | 2900 | 0.75 | 2.3 | ||
| 32-125A | 4.5 | 1.25 | 16 | 43 | 2900 | 0.55 | 2.3 | ||
| 32-160 | 6.5 | 5 | 32 | 44 | 2900 | 1.5 | 2.3 | ||
| 32-160A | 4 | 1.1 | 25 | 34 | 2900 | 1.1 | 2.0 | ||
| 32-160(I) | 6.3 | 1.75 | 32 | 40 | 2900 | 2.2 | 2.0 | ||
| 32-200 | 4.5 | 12.5 | 50 | 32 | 2900 | 3 | 2.0 | ||
| 32-200(I) | 6.3 | 1.75 | 50 | 33 | 2900 | 4 | 2.0 | ||
| 32-200A | 4 | 1.11 | 44 | 40 | 2900 | 2.2 | 2.0 | ||
| 40-100 | 6.3 | 1.75 | 12.5 | 54 | 2900 | 0.55 | 2.3 | ||
| 40100A | 5.6 | 1.56 | 10 | 52 | 2900 | 0.37 | 2.3 | ||
| 40-125 | 6.3 | 1.75 | 20 | 46 | 2900 | 1.1 | 2.3 | ||
| 40-125A | 5.6 | 1.56 | 16 | 45 | 2900 | 0.75 | 2.3 | ||
| 40-160 | 6.3 | 1.75 | 32 | 40 | 2900 | 2.2 | 2.3 | ||
| 40-160A | 5.9 | 1.64 | 28 | 39 | 2900 | 1.5 | 2.3 | ||
| 40-160B | 5.5 | 1.53 | 24 | 38 | 2900 | 1.1 | 2.3 | ||
| 40-200 | 6.3 | 1.75 | 50 | 33 | 2900 | 4 | 2.3 | ||
| 40-200A | 5.9 | 1.64 | 44 | 31 | 2900 | 3 | 2.3 | ||
| 40-200B | 5.3 | 1.47 | 36 | 29 | 2900 | 2.2 | 2.3 | ||
| 40-250 | 6.3 | 1.75 | 80 | 28 | 2900 | 7.5 | 2.3 | ||
| 40-250A | 5.9 | 1.64 | 70 | 28 | 2900 | 5.5 | 2.3 | ||
| 40-250B | 5.5 | 1.53 | 60 | 27 | 2900 | 4 | 2.3 | ||
| 40-100(I) | 12.5 | 3.47 | 12.5 | 62 | 2900 | 1.1 | 2.3 | ||
| 40-100(I)A | 11 | 3.05 | 10 | 60 | 2900 | 0.75 | 2.3 | ||
| 40-125(I) | 12.5 | 3.47 | 20 | 58 | 2900 | 1.5 | 2.3 | ||
| 40-125(I)A | 11 | 3.05 | 16 | 57 | 2900 | 1.1 | 2.3 | ||
| 40-160(I) | 12.5 | 3.47 | 32 | 52 | 2900 | 3 | 2.3 | ||
| 40-160(I)A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 2.3 | ||
| 40-160(I)B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 2.3 | ||
| 40-200(I) | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 2.3 | ||
| 40-200(I)A | 11.7 | 3.25 | 44 | 45 | 2900 | 4 | 2.3 | ||
| 40-200(I)B | 10.6 | 2.94 | 36 | 44 | 2900 | 3 | 2.3 | ||
| 40-250(I) | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 2.3 | ||
| 40-250(I)A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 2.3 | ||
| 40-250(I)B | 10.8 | 3.0 | 60 | 37 | 2900 | 7.5 | 2.3 | ||
| 40-250(I)C | 10.0 | 2.78 | 52 | 36 | 2900 | 5.5 | 2.3 | ||
| 50-100 | 12.5 | 3.47 | 12.5 | 62 | 2900 | 1.1 | 2.3 | ||
| 50-100A | 11 | 3.05 | 10 | 60 | 2900 | 0.75 | 2.3 | ||
| 50-125 | 12.5 | 3.47 | 20 | 58 | 2900 | 1.5 | 2.3 | ||
| 型 号 | 流 量Q | 扬程 m |
效率 % |
转速 r/min |
电机功率 KW |
允许汽蚀余量 m |
|
| m3/h | l/s | ||||||
| 50-125A | 11 | 3.05 | 16 | 57 | 2900 | 1.1 | 2.3 |
| 50-160 | 12.5 | 3.47 | 32 | 52 | 2900 | 3 | 2.3 |
| 50-160A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 2.3 |
| 50-160B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 2.3 |
| 50-200 | 12.5 | 3.47 | 50 | 46 | 2900 | 5.5 | 2.3 |
| 50-200A | 11.7 | 3.25 | 44 | 45 | 2900 | 4 | 2.3 |
| 50-200B | 10.6 | 2.94 | 36 | 44 | 2900 | 3 | 2.3 |
| 50-250 | 12.5 | 3.47 | 80 | 38 | 2900 | 11 | 2.3 |
| 50-250A | 11.6 | 3.22 | 70 | 38 | 2900 | 7.5 | 2.3 |
| 50-250B | 10.8 | 3.0 | 60 | 37 | 2900 | 7.5 | 2.3 |
| 50-250C | 10.0 | 2.78 | 52 | 36 | 2900 | 5.5 | 2.3 |
| 50-100(I) | 25 | 6.94 | 12.5 | 69 | 2900 | 1.5 | 2.5 |
| 50-100(I)A | 22.3 | 6.19 | 10 | 67 | 2900 | 1.1 | 2.5 |
| 50-125(I) | 25 | 6.94 | 20 | 68 | 2900 | 3 | 2.5 |
| 50-125(I)A | 22.3 | 6.19 | 16 | 66 | 2900 | 2.2 | 2.5 |
| 50-160(I) | 25 | 6.94 | 32 | 63 | 2900 | 4 | 2.5 |
| 50-160(I)A | 23.4 | 6.5 | 28 | 62 | 2900 | 4 | 2.5 |
| 50-160(I)B | 21.6 | 6.0 | 24 | 58 | 2900 | 3 | 2.5 |
| 50-200(I) | 25 | 6.94 | 50 | 58 | 2900 | 7.5 | 2.5 |
| 50-200(I)A | 23.5 | 6.53 | 44 | 57 | 2900 | 7.5 | 2.5 |
| 50-200(I)B | 21.8 | 6.06 | 38 | 55 | 2900 | 5.5 | 2.5 |
| 50-250(I) | 25 | 6.94 | 80 | 50 | 2900 | 15 | 2.5 |
| 50-250(I)A | 23.4 | 6.5 | 70 | 50 | 2900 | 11 | 2.5 |
| 50-250(I)B | 21.6 | 6.0 | 60 | 49 | 2900 | 11 | 2.5 |
| 50-315(I) | 25 | 6.94 | 125 | 40 | 2900 | 30 | 2.5 |
| 50-315(I)A | 23.7 | 6.58 | 113 | 40 | 2900 | 22 | 2.5 |
| 50-315(I)B | 22.5 | 6.25 | 101 | 39 | 2900 | 18.5 | 2.5 |
| 50-315(I)C | 20.6 | 5.72 | 85 | 38 | 2900 | 15 | 2.5 |
| 65-100 | 25 | 6.94 | 12.5 | 69 | 2900 | 1.5 | 2.5 |
| 65-100A | 22.3 | 6.19 | 10 | 67 | 2900 | 1.1 | 2.5 |
| 65-125 | 25 | 6.94 | 20 | 68 | 2900 | 3 | 2.5 |
| 65-125A | 22.3 | 6.19 | 16 | 66 | 2900 | 2.2 | 2.5 |
| 65-160 | 25 | 6.94 | 32 | 63 | 2900 | 4 | 2.5 |
| 65-160A | 23.4 | 6.5 | 28 | 62 | 2900 | 4 | 2.5 |
| 65-160B | 21.6 | 6.0 | 24 | 58 | 2900 | 3 | 2.5 |
| 65-200 | 25 | 6.94 | 50 | 58 | 2900 | 7.5 | 2.5 |
| 65-200A | 23.5 | 6.53 | 44 | 57 | 2900 | 7.5 | 2.5 |
| 65-200B | 21.8 | 6.06 | 38 | 55 | 2900 | 5.5 | 2.5 |
| 65-250 | 25 | 6.94 | 80 | 50 | 2900 | 15 | 2.5 |
| 65-250A | 23.4 | 6.5 | 70 | 50 | 2900 | 11 | 2.5 |
| 65-250B | 21.6 | 6.0 | 60 | 49 | 2900 | 11 | 2.5 |
| 65-315 | 25 | 6.94 | 125 | 40 | 2900 | 30 | 2.5 |
| 65-315A | 23.7 | 6.58 | 113 | 40 | 2900 | 22 | 2.5 |
| 65-315B | 22.5 | 6.25 | 101 | 39 | 2900 | 18.5 | 2.5 |
| 65-315C | 20.6 | 5.72 | 85 | 38 | 2900 | 15 | 2.5 |
| 65-100(I) | 50 | 13.9 | 12.5 | 73 | 2900 | 3 | 3.0 |
| 65-100(I)A | 44.7 | 12.4 | 10 | 72 | 2900 | 2.2 | 3.0 |
| 65-125(I) | 50 | 13.9 | 20 | 72.5 | 2900 | 5.5 | 3.0 |
| 型 号 | 流 量Q | 扬程 m |
效率 % |
转速 r/min |
电机功率 KW |
允许汽蚀余量 m |
|
| m3/h | l/s | ||||||
| 65-125(I)A | 45 | 12.5 | 16 | 71 | 2900 | 4 | 3.0 |
| 65-160(I) | 50 | 13.9 | 32 | 71 | 2900 | 7.5 | 3.0 |
| 65-160(I)A | 46.7 | 13.0 | 28 | 70 | 2900 | 7.5 | 3.0 |
| 65-160(I)B | 43.3 | 12.0 | 24 | 69 | 2900 | 5.5 | 3.0 |
| 65-200(I) | 50 | 13.9 | 50 | 67 | 2900 | 15 | 3.0 |
| 65-200(I)A | 47 | 13.1 | 44 | 66 | 2900 | 11 | 3.0 |
| 65-200(I)B | 43.5 | 12.1 | 38 | 65 | 2900 | 7.5 | 3.0 |
| 65-250(I) | 50 | 13.9 | 80 | 59 | 2900 | 22 | 3.0 |
| 65-250(I)A | 46.7 | 13.0 | 70 | 59 | 2900 | 18.5 | 3.0 |
| 65-250(I)B | 43.3 | 12.0 | 60 | 58 | 2900 | 15 | 3.0 |
| 65-315(I) | 50 | 13.9 | 125 | 54 | 2900 | 37 | 3.0 |
| 65-315(I)A | 46.5 | 12.9 | 110 | 54 | 2900 | 30 | 3.0 |
| 65-315(I)B | 44.5 | 12.4 | 100 | 53 | 2900 | 30 | 3.0 |
| 65-315(I)C | 41 | 11.4 | 85 | 51 | 2900 | 22 | 3.0 |
| 80-100 | 50 | 13.9 | 12.5 | 73 | 2900 | 3 | 3.0 |
| 80-100A | 44.7 | 12.5 | 10 | 72 | 2900 | 2.2 | 3.0 |
| 80-125 | 50 | 13.9 | 20 | 72.5 | 2900 | 5.5 | 3.0 |
| 80-125A | 45 | 12.5 | 16 | 71 | 2900 | 4 | 3.0 |
| 80-160 | 50 | 13.9 | 32 | 71 | 2900 | 7.5 | 3.0 |
| 80-160A | 46.7 | 13.0 | 28 | 70 | 2900 | 7.5 | 3.0 |
| 80-160B | 43.3 | 12.0 | 24 | 69 | 2900 | 5.5 | 3.0 |
| 80-200 | 50 | 13.9 | 50 | 67 | 2900 | 15 | 3.0 |
| 80-200A | 47 | 13.1 | 44 | 66 | 2900 | 11 | 3.0 |
| 80-200B | 43.5 | 12.1 | 38 | 65 | 2900 | 7.5 | 3.0 |
| 80-250 | 50 | 13.9 | 80 | 59 | 2900 | 22 | 3.0 |
| 80-250A | 46.7 | 13.0 | 70 | 59 | 2900 | 18.5 | 3.0 |
| 80-250B | 43.3 | 12.0 | 60 | 58 | 2900 | 15 | 3.0 |
| 80-315 | 50 | 13.9 | 125 | 54 | 2900 | 37 | 3.0 |
| 80-315A | 46.5 | 12.9 | 110 | 54 | 2900 | 30 | 3.0 |
| 80-315B | 44.5 | 12.4 | 100 | 53 | 2900 | 30 | 3.0 |
| 80-315C | 41 | 11.4 | 85 | 51 | 2900 | 22 | 3.0 |
| 80-350 | 50 | 13.9 | 150 | 66 | 2900 | 55 | 3.0 |
| 80-350A | 44.5 | 12.4 | 142 | 65 | 2900 | 45 | 3.0 |
| 80-350B | 41 | 11.4 | 135 | 62 | 2900 | 37 | 3.0 |
| 80-100(I) | 100 | 27.8 | 12.5 | 76 | 2900 | 5.5 | 4.5 |
| 80-100(I)A | 89 | 24.7 | 10 | 74 | 2900 | 4 | 4.5 |
| 80-125(I) | 100 | 27.8 | 20 | 76 | 2900 | 11 | 4.5 |
| 80-125(I)A | 89 | 24.7 | 16 | 74 | 2900 | 7.5 | 4.5 |
| 80-160(I) | 100 | 27.8 | 32 | 76 | 2900 | 15 | 4.5 |
| 80-160(I)A | 93.5 | 26.0 | 28 | 74 | 2900 | 11 | 4.5 |
| 80-160(I)B | 86.6 | 24.1 | 24 | 72 | 2900 | 11 | 4.5 |
| 80-200(I) | 100 | 27.8 | 50 | 74 | 2900 | 2 | 4.5 |
| 80-200(I)A | 93.5 | 26.0 | 44 | 73 | 2900 | 18.5 | 4.5 |
| 80-200(I)B | 87 | 24.2 | 38 | 71 | 2900 | 15 | 4.5 |
| 80-250(I) | 100 | 27.8 | 80 | 69 | 2900 | 37 | 4.5 |
| 80-250(I)A | 93.5 | 26.0 | 70 | 68 | 2900 | 30 | 4.5 |
| 80-250(I)B | 87 | 24.2 | 60 | 66 | 2900 | 30 | 4.5 |
| 80-315(I) | 100 | 27.8 | 125 | 66 | 2900 | 75 | 4.5 |
| 型 号 | 流 量Q | 扬程 m |
效率 % |
转速 r/min |
电机功率 KW |
允许汽蚀余量 m |
|
| m3/h | l/s | ||||||
| 80-315(I)A | 95 | 26.4 | 113 | 66 | 2900 | 55 | 4.0 |
| 80-315(I)B | 90 | 25 | 101 | 65 | 2900 | 45 | 4.0 |
| 80-315(I)C | 82 | 22.8 | 85 | 63 | 2900 | 37 | 4.0 |
| 100-100 | 100 | 27.8 | 12.5 | 76 | 2900 | 5.5 | 4.5 |
| 100-100A | 89 | 47 | 10 | 74 | 2900 | 4 | 4.5 |
| 100-125 | 100 | 27.8 | 20 | 76 | 2900 | 11 | 4.5 |
| 100-125A | 89 | 24.7 | 16 | 74 | 2900 | 7.5 | 4.5 |
| 100-160 | 100 | 27.8 | 32 | 76 | 2900 | 15 | 4.5 |
| 100-160A | 93.5 | 26.0 | 28 | 74 | 2900 | 11 | 4.5 |
| 100-160B | 86.6 | 24.1 | 24 | 72 | 2900 | 11 | 4.5 |
| 100-200 | 100 | 27.8 | 50 | 74 | 2900 | 22 | 4.0 |
| 100-200A | 93.5 | 26.0 | 44 | 73 | 2900 | 18.5 | 4.0 |
| 100-200B | 87 | 24.2 | 38 | 71 | 2900 | 15 | 4.0 |
| 100-250 | 100 | 27.8 | 80 | 69 | 2900 | 37 | 4.0 |
| 100-250A | 93.5 | 26.0 | 70 | 68 | 2900 | 30 | 4.0 |
| 100-250B | 87 | 24.2 | 60 | 66 | 2900 | 30 | 4.0 |
| 100-315 | 100 | 27.8 | 125 | 66 | 2900 | 75 | 4.0 |
| 100-315A | 95 | 26.4 | 113 | 66 | 2900 | 55 | 4.0 |
| 100-315B | 90 | 25 | 101 | 65 | 2900 | 45 | 4.0 |
| 100-315C | 82 | 22.8 | 85 | 63 | 2900 | 37 | 4.0 |
| 100-100(I) | 160 | 44.4 | 12.5 | 73 | 2900 | 11 | 4.5 |
| 100-125(I) | 160 | 44.4 | 20 | 74 | 2900 | 15 | 4.5 |
| 100-125(I)A | 140 | 39 | 17 | 72 | 2900 | 11 | 4.5 |
| 100-160(I) | 160 | 44.4 | 32 | 32 | 2900 | 22 | 5.6 |
| 100-160(I)A | 140 | 39 | 28 | 28 | 2900 | 18.5 | 5.0 |
| 100-200(I) | 100 | 44.4 | 50 | 50 | 2900 | 37 | 5.2 |
| 100-200(I)A | 140 | 39 | 45 | 45 | 2900 | 30 | 4.5 |
| 100-200(I)B | 100 | 27.8 | 40 | 40 | 2900 | 22 | 4.5 |
| 100-250(I) | 160 | 44.4 | 80 | 80 | 2900 | 55 | 4.8 |
| 100-250(I)A | 140 | 39 | 72 | 72 | 2900 | 45 | 4.5 |
| 100-250(I)B | 100 | 27.8 | 65 | 65 | 2900 | 37 | 4.5 |
| 100-350 | 100 | 27.8 | 150 | 150 | 2900 | 90 | 4.0 |
| 100-350A | 87 | 24.2 | 142 | 142 | 2900 | 75 | 4.0 |
| 100-350B | 82 | 22.8 | 135 | 135 | 2900 | 55 | 4.0 |
| 125-100 | 160 | 44.4 | 12.5 | 12.5 | 2900 | 11 | 4.0 |
| 125-100A | 143 | 39.7 | 10 | 10 | 2900 | 7.5 | 4.0 |
| 125-125 | 160 | 44.4 | 20 | 20 | 2900 | 15 | 4.0 |
| 125-125A | 143 | 39.7 | 16 | 16 | 2900 | 11 | 4.0 |
| 125-160 | 160 | 44.4 | 32 | 32 | 2900 | 22 | 4.0 |
| 125-160A | 150 | 41.7 | 28 | 28 | 2900 | 18.5 | 4.0 |
| 125-160B | 138 | 38.3 | 24 | 24 | 2900 | 15 | 4.0 |
| 125-200 | 160 | 44.4 | 50 | 50 | 2900 | 37 | 5.5 |
| 125-200A | 150 | 41.7 | 44 | 44 | 2900 | 30 | 5.5 |
| 125-200B | 138 | 38.3 | 37.5 | 37.5 | 2900 | 22 | 5.5 |
| 125-250 | 160 | 44.4 | 80 | 80 | 2900 | 55 | 5.0 |
| 125-250A | 150 | 41.7 | 70 | 70 | 2900 | 45 | 5.5 |

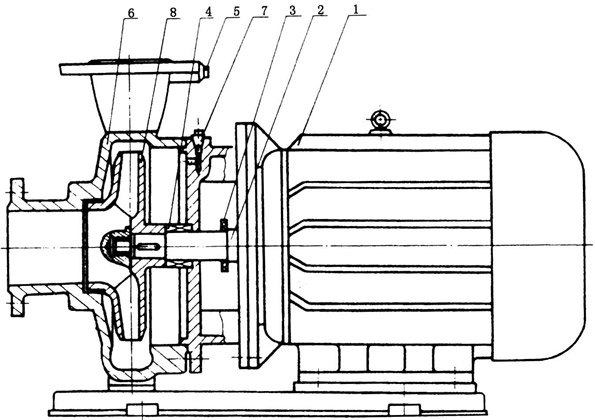

结构图
1 电动机：直接与水泵联接传送动力，采用名牌电机。
2 泵轴：与电机同轴，为电机加长轴，确保了轴的同心，使泵运转平稳。无噪音和振动现象，采用镀铬处理，增强了使用寿命。
3 挡水圈：防止因密封漏水而使电机进水。
4 机械密封：采用不锈钢、碳化钨、氟橡胶等材料制成。平衡式耐高温。高压机械密封，运行寿命长，不渗漏，对轴无磨损，不积水垢，保证工作环境的整洁。
5 取压塞：可安装压力表直观监控泵的正常高效运行
6 泵体：压出塞和吸入室采用优秀水力模型设计而成，既美观又高效，设有安装底脚，便于安装和运行稳固。
7 放气塞：灌泵时排净泵内空气，保证了泵的正常启动。
8 叶轮：采用先进的水力模型设计而成，具有高效率，可靠性好等特点。
感谢您访问我们扬子江泵业的网站www.yzjbf.cn，如有任何水泵疑问我们一定会尽心尽力为您提供优质的服务.
