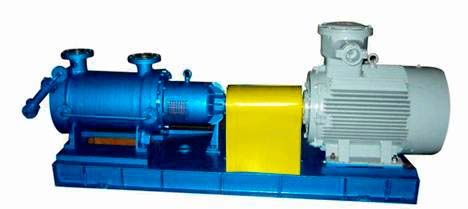

DGC多级磁力驱动泵结构特点

时间：2012-11-3 来源：扬子江泵业浏览数：1328

DGC型泵是双层壳体磁力驱动多级离心泵。该产品旨在解决小流量，高扬程的流体输送问题。该产品结构设计、水力设计及磁路设计先进新颖，技术达到国内领先水平。首家成功地将磁力驱动技术应用于多级离泵，解决了大功率，大间隙磁路设计问题，居国内领先地位。同时解决了高工作压力下多级泵的轴向力平衡及静密封问题。磁力驱动联轴器及轴承失效监控装置的配合，更保障了泵长期安全可靠运行。
适宜输送不含固体颗粒的易燃、易爆、剧毒的介质和其它要求无泄漏及不允许密封污染的介质。广泛地应用于油田增压注水，高中压远距离输水、输油，电厂疏水泵，炼化和煤化工行业液烃泵、顺丁像胶，加氢精制及铂重速装置等。
DGC is a kind of magnetic-driving, double-casing, multi-stage centrifugal pump, aiming to solve the problem of conveying liquid of little capacity, high-lift. The structure design, hydro -mechanical design and magnetic design are domestically advanced. HIGHLAND is the leading company that has successfully applied magnetic driving technology into multi-stage pump in China, and has solved the problem of high-power, large-gap magnetic circuit design. HIGHLAND has also solved the problem of axial force balance and static seal of multi-stage pump under high- pressure. The combination of magnetic-driving coupling and bearing failure monitoring device guarantee the long-term safe and reliable operation of pumps.
It is suitable to convey inflammable, explosive, severely poisonous mediums without solid particles, and other mediums requiring no seal pollution. It is widely applied into oil field pressurizing water injection, long-distance conveying water or oil under high and middle pressure, drain pump plant, petrochemical and coal chemical industry liquid hydrocarbon pumps, butadiene rubber, hydrofining and platinum heavy speed devices, etc.
结构特点Design features
（1）卧式径向剖分，外壳为筒形结构，内壳为节段式结构
（2）全密封、无泄漏，无污染
（3）根据介质温度选用底脚支承(基本型)和中心支承(高温型)
（4）大功率磁性驱动
（5）入口可水平、垂直或侧向任意角度布置，水平布置更利于采取的措施提高泵的抗汽蚀性能
（6）出口可垂直或侧向任意角度布置
（7）可选用与电机直联或带膜片连接器两种结构
（8）内循环的冷却和润滑方式，更适宜输送各种流体介质，包括易汽化介质
（1）Radial horizontal subdivision, cylindrical outer shell, sectional inner shell
（2）Fully sealed, non-leaking, non-polluting
（3）The foot support (basic type) and the center support (high-temperature type) can be adopted according to the medium temperature.
（4）High-power magnetic driving
（5）The inlet can be horizontally, vertically or laterally arranged or in any other angle; the horizontal layout is more conductive to the measures taken to improve the anti-cavitation performance of the pump.
（6）The outlet can be in vertical arrangement or lateral in any angle.
（7）Direct motor linking or by connector with prince film
（8）Internal recycling way of cooling and lubricating; it is more suitable for conveying a variety of fluid mediums, including the easily-vaporized mediums.
性能范围 The main specifications:
流量Capacity： 3～280m3 /h
扬程Head:86～600m
温度Temperature: -40℃ ～ +250 ℃
大工作压力The max working pressure:6-25MPa

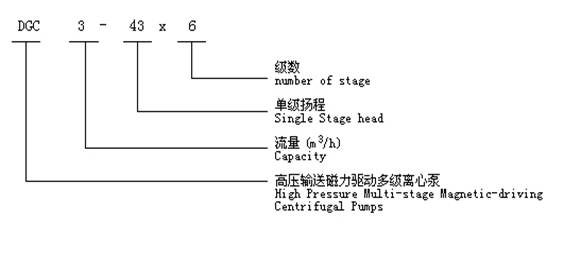

型号标记Code system

DGC标准性能表
泵型号		流量(m³/h)	扬程(m)	转速(r/min)	效率(%)	功率(kW)		必需汽蚀余量NPSHr(m)
泵型号		流量(m³/h)	扬程(m)	转速(r/min)	效率(%)	轴功率	电机功率	必需汽蚀余量NPSHr(m)
DGC1.6-50×	2		100	2950	13	3.35	7.5	2
	3		150			5.03	11
	4		200			6.07	15
	5		250			8.38	15
	6		300			10.05	18.5
	7		350			11.73	22
	8		400			13.4	22
DGC3-43×	2	3	86	2950	13.5	5.2	7.5	2
	3		129			7.8	11
	4		172			10.4	15
	5		215			13	18.5
	6		258		12	17.6	22
	7		301			20.5	30
	8		344			23.4	30
	9		387			26.3	37
	10		430			29.3	37
DGC6-25×	3	6.3	75	2950	33	3.9	5.5	2.5
	4		100			5.2	7.5
	5		125			6.5	11
	6		150			7.8	11
	7		175			9.1	15
	8		200			10.4	15
	9		225			11.7	15
	10		250			13	18.5
	11		275			14.3	18.5
	12		300			15.6	22
DGC6-43×	2	6	86	2950	21	6.7	11	2
	3		129			10	15
	4		172			13.4	18.5
	5		215			16.7	22
	6		258			20.1	30
	7		301			23.4	30
	8		344			26.8	37
	9		387			30.1	37
	10		430			33.4	45
DGC10-40×	2	10	80	2950	33	6.6	11	2.3
	3		120			9.9	15
	4		160			13.2	18.5
	5		200			16.5	22
	6		240			19.8	30
	7		280			23.1	30
	8		320			26.4	37
	9		360			29.7	37
	10		400			33	45
DGC12-25×	3	12.5	75	2950	42	6.08	7.5	2
	4		100			8.1	11
	5		125			10.1	15
	6		150			12.2	15
	7		175			14.2	18.5
	8		200			16.2	22
	9		225			18.3	22
	10		250			20.3	30
	11		275			22.3	30
	12		300			24.3	30
DGC12-50×	3	12.5	150	2950	28	18.2	30	2.7
	4		200			24.3	30
	5		250			30.4	37
	6		300			36.5	45
	7		350			42.5	55
	8		400			48.6	55
	9		450			54.7	75
	10		500			60.8	75
	11		550			66.8	90
	12		600			72.9	90
DGC25-30×	3	25	90	2950	50	12.2	15	2.9
	4		120			16.3	22
	5		150			20.4	30
	6		180			24.5	30
	7		210			28.6	37
	8		240			32.7	45
	9		270			36.8	45
	10		300			40.8	55
DGC25-50×	2	25	100	2950	40	17	22	2.9
	3		150			25.5	37
	4		200			34	45
	5		250			42.5	55
	6		300			51	75
	7		350			59.5	75
	8		400			68	90
	9		450			76.6	110
	10		500			85.1	110
DGC46-30×	3	46	90	2950	58	19.4	30	3.5
	4		120			25.9	37
	5		150			32.4	45
	6		180			38.9	55
	7		210			45.3	55
	8		240			51.8	75
	9		270			58.3	75
	10		300			64.8	90
DGC46-50×	2	46	100	2950	51	24.6	30	3.5
	3		150			36.8	45
	4		200			49.1	75
	5		250			61.4	75
	6		300			73.7	90
	7		350			85.9	110
	8		400			98.2	132
	9		450			110	132
	10		500			122	160
	11		550			135	160
	12		600			147	185
DGC85-45×	2	85	90	2950	56	37	45	4.2
	3		135			55	75
	4		180			74	90
	5		225			93	110
	6		270			112	160
	7		315			130	160
	8		360			149	185
	9		405			167	220
DGC85-80×	2	85	160	2950	53	70	90	4.4
	3		240			104	132
	4		320			139	185
	5		400			174	220
	6		480			208	250
	7		560			243	315
DGC155-30×	3	155	90	1480	63	60	75	3.6
	4		120			80	110
	5		150			100	132
	6		180			120	160
	7		210			140	185
	8		240			160	200
	9		270			180	220
	10		300			200	250
DGC280-43×	2	280	86	1480	65	100	132	4
	3		129			151	185
	4		172			201	250
	5		215			250	315
